Mroace Concealed Cabinet Hinge Jig

Features

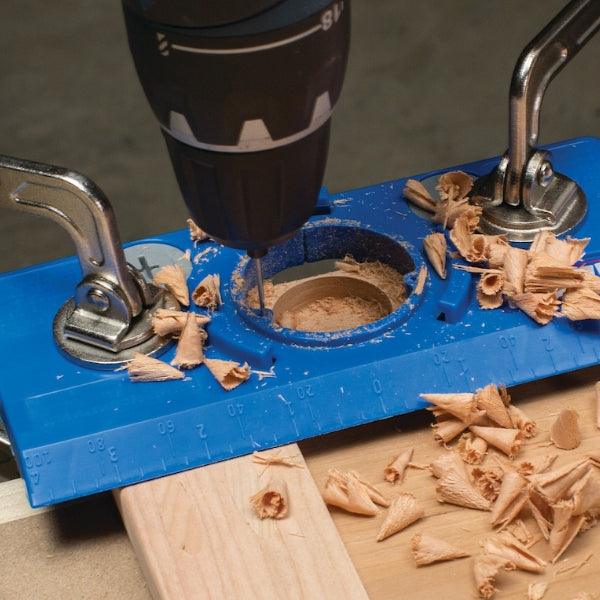

• PRECISE 35MM CONCEALED HINGE DRILLING: Designed to help drill accurate 35mm cup holes for European-style concealed cabinet hinges using a standard hand drill. The positioning system helps improve hinge alignment and delivers more consistent cabinet door installation results.
• CARBIDE-TIPPED DRILL BIT WITH DEPTH STOP: The included four-cutter carbide-tipped bit is designed for clean, controlled 35mm hinge cup holes. An adjustable depth stop collar helps maintain consistent drilling depth while reducing the risk of drilling too deeply into the cabinet door.

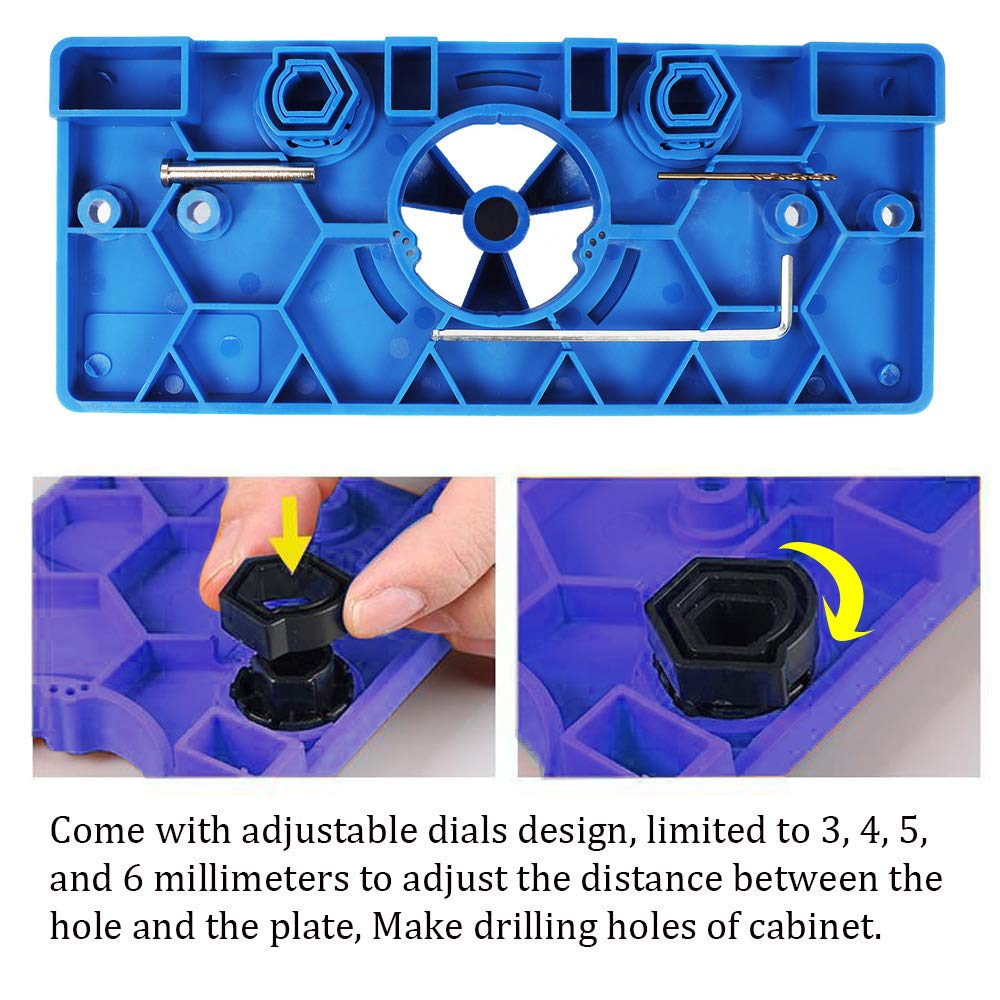

• ADJUSTABLE HINGE OFFSET SETTINGS: The adjustable fence supports 3mm, 4mm, 5mm, and 6mm hinge offsets, allowing you to fine-tune hinge positioning for different cabinet door styles and thicknesses.

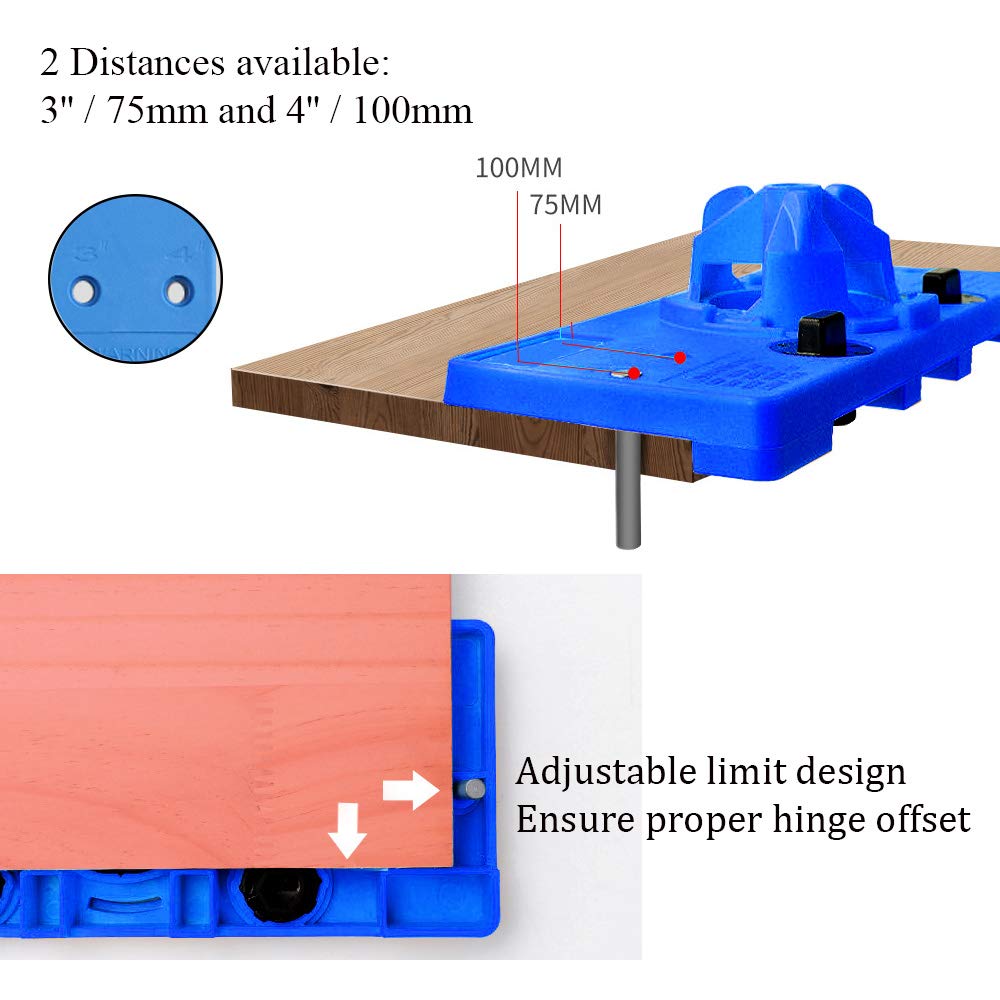

• FLEXIBLE HINGE PLACEMENT: Position hinges starting approximately 2 in / 50mm from the door edge, with flexible spacing for different cabinet layouts. Suitable for custom cabinet projects, replacement doors, furniture builds, and other woodworking applications.

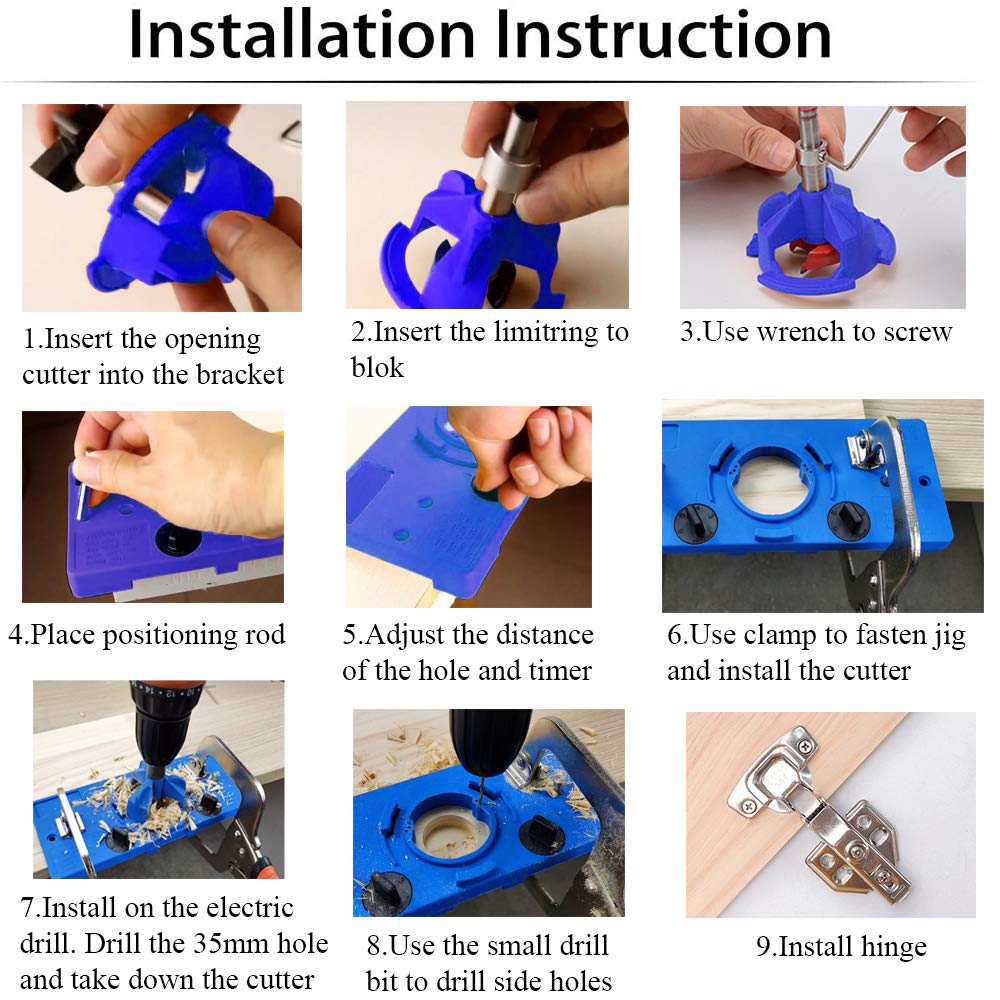

• REPEATABLE ALIGNMENT FOR WOODWORKING PROJECTS: Built to help woodworkers achieve consistent hinge placement across multiple cabinet doors. The jig simplifies measuring, positioning, and drilling, making concealed hinge installation more efficient for both DIY and workshop use.

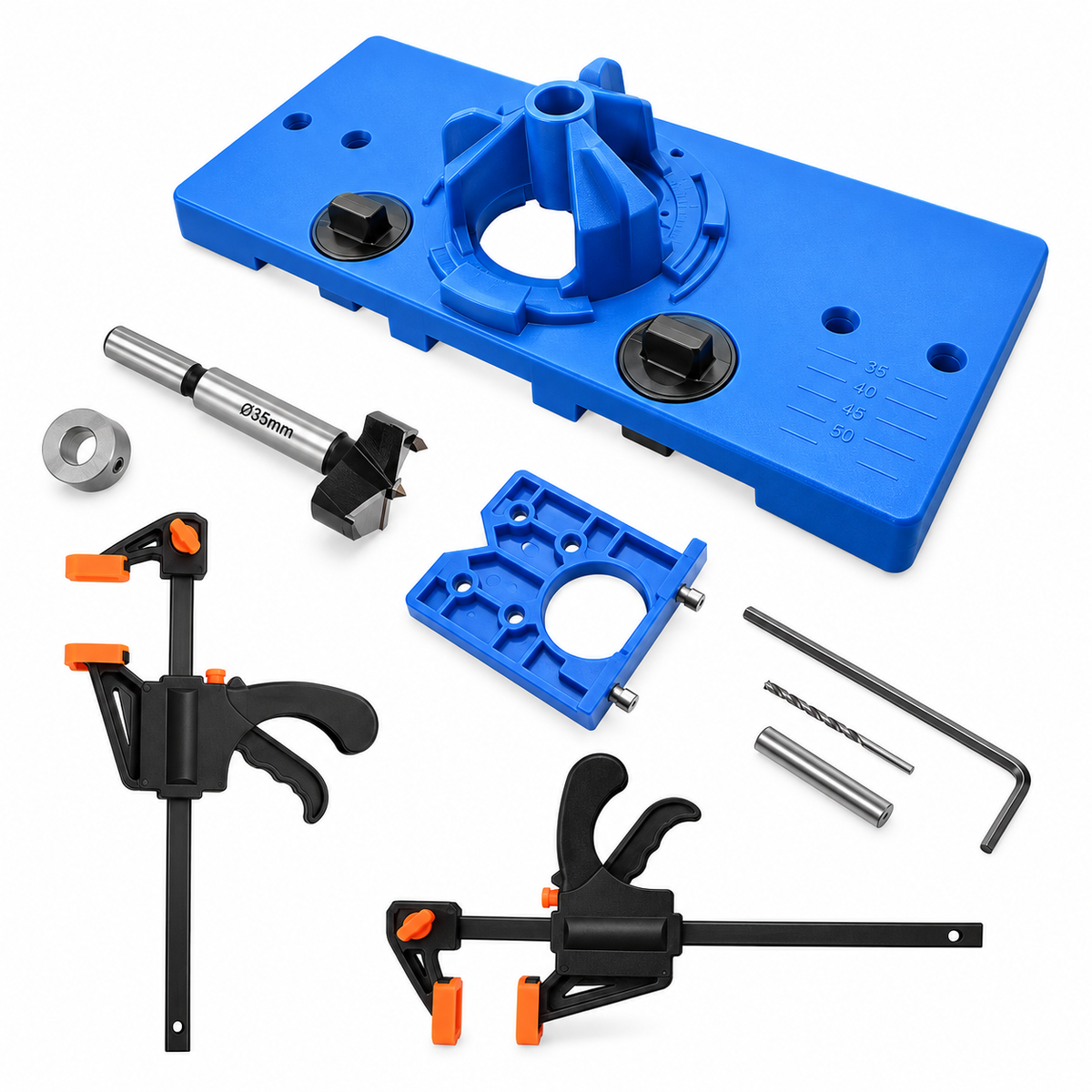

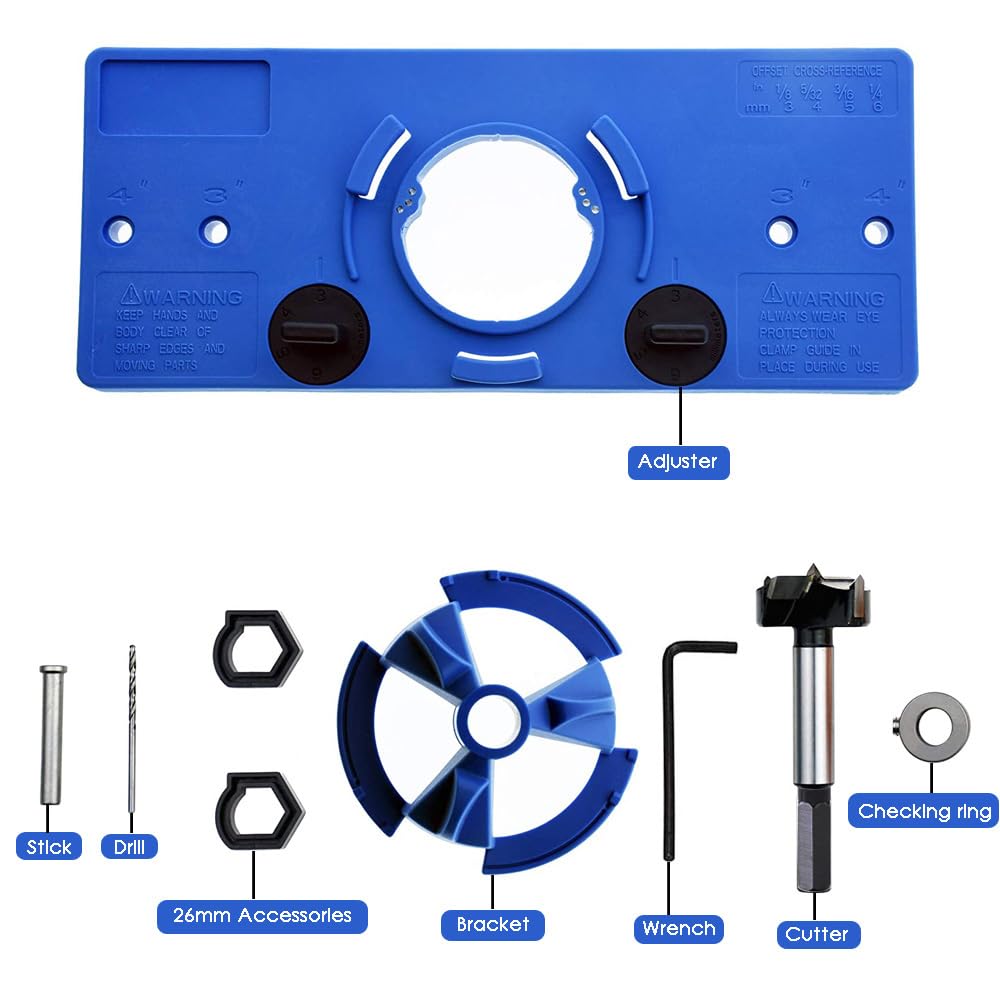

Package includes

• 1 x Mroace Concealed Cabinet Hinge Jig
